New Condition Universal Milling Machine ZAY7045FG ZAY7032FG ZAY7040FG

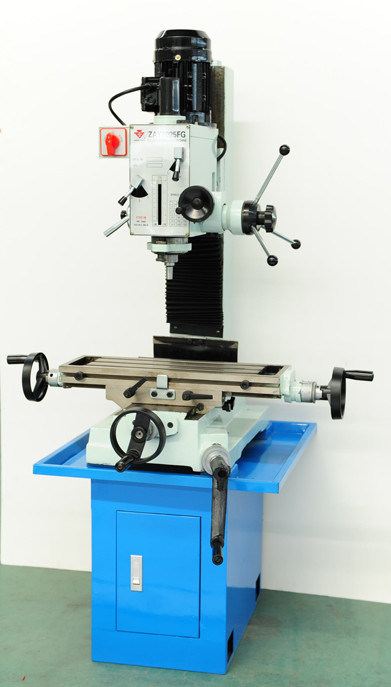

Large Image : New Condition Universal Milling Machine ZAY7045FG ZAY7032FG ZAY7040FG

Product Details:

Certification:	CE ISO9001
Model Number:	ZAY7045FG

Payment & Shipping Terms:

Price:	$900.00 - $1,200.00/Sets
Packaging Details:	Wooden case standard export package
Supply Ability:	200 Set/Sets per Month

Contact Now

New Condition Universal Milling Machine ZAY7045FG ZAY7032FG ZAY7040FG

Description

Condition:	New	CNC Or Not:	Normal
Drilling Speed:	80-1250/95-1500rpm	Voltage:	220/380v
Dimension(LWH):	7708801160mm	Weight:	320kg/370kg, 325kg/375kg
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Power:	0.75KW(1HP)/1.5KW (2HP)
Port:	SHANGHAI

MODEL	ZAY7032FG	ZAY7040FG	ZAY7045FG
Max Face mill capacity	32mm	40mm	45mm
Max End mill capacity	63mm	80mm
End milling capacity	20mm	32mm
Max.distance from spindle nose to table	450mm
Min.distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Swivel angleof headstock(perpendicularly)	90°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer's requirement
Net weight/gross weight	320kg/370kg, 325kg/375kg
Packing size	770×880×1160mm
Loading amount	36pcs/20container

New Condition Universal Milling Machine ZAY7045FG ZAY7032FG ZAY7040FG 0
