Gear Driven Metal Drilling Milling Machine With DRO

Gear Driven Metal Drilling Milling Machine With DRO
Gear Driven Metal Drilling Milling Machine With DRO Gear Driven Metal Drilling Milling Machine With DRO Gear Driven Metal Drilling Milling Machine With DRO Gear Driven Metal Drilling Milling Machine With DRO Gear Driven Metal Drilling Milling Machine With DRO Gear Driven Metal Drilling Milling Machine With DRO

Large Image :  Gear Driven Metal Drilling Milling Machine With DRO

Product Details:
Certification: ISO9001,CE
Model Number: ZAY7032G, ZAY7040G, ZAY7045G
Payment & Shipping Terms:
Price: $1,150.00/Sets 1-4 Sets
Packaging Details: Standard packing:WOODEN BOX PACKING<br>Also can be customed
Supply Ability: 500 Set/Sets per Month
Contact Now

Gear Driven Metal Drilling Milling Machine With DRO

Description
Condition: New Type: CLASSIC
Max. Drilling Dia. (mm): 32/40/45 Mm Range Of Spindle Speed(r.p.m): 80 - 1250 R.p.m
CNC Or Not: Normal Drilling Speed: 80-1250r.p.m
Voltage: Customed Dimension(L*W*H): 770*880*1160mm
Power (kW): 0.75kw/1.1kw/1.5kw Weight (KG): 368 KG
Warranty: 1 Year Key Selling Points: Micro Precesion Feed
Showroom Location: None Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Construction Works , Energy & Mining, Advertising Company
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine Drilling Capacity: 32/40/45mm
Face Milling Capacity: 80mm Distance From Spindle Nose To Table: 440mm(optional:670mm)
Spindle Travel: 130mm Forward And Backward Travel Of Table: 175mm
Left And Right Travel Of Table: 500mm(700mm) Table Size: 800*240mm(optional 1000*240mm)
Keyword: Manual Bench Drilling And Milling Machine Motor Power: 1.5 KW (2HP)
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None Port: SHANGHAI


Features

1. Gear driven and round column
2: Milling,drilling ,tapping,boring and reaming
3: Headstock swivels 360° horizontally
4: Micro feed precision
5: Positive spindle lock
6: Strong rigidity,powerful cutting and  precisely positioning.



Gear Driven Metal Drilling Milling Machine With DRO 0

ITEM
ZAY7032G
ZAY7040G
ZAY7045G
Drilling capacity
32mm
40mm
45mm
Face milling capacity
63mm
80mm
80mm
End milling capacity
20mm
32mm
32mm
Distance from spindle nose to table
440mm(optional:670mm)


Min.distance from spindle axis to column
272.5mm


Spindle travel
130mm


Spindle taper
M.T.3 or R8
M.T.4 or R8
M.T.4 or R8
Step of spindle speed
6


Range of spindle speed 50Hz
80-1250 r.p.m


60Hz
95-1500 r.p.m


Swivel angle of headstock(horizontally/perpendicularly)
±360°


Perpendicularly
±90°


Table size
800×240mm


Forward and backward travel of table
175mm


Left and right travel of table
500m


Motor power
0.75KW
1.1KW
1.5KW
Voltage/frequency
As customer's requirement


Net weight/gross weight
315kgs/365kgs
315kgs/365kgs
318kgs/368kgs
Packing size
770*880*1160mm
1020*820*1160mm

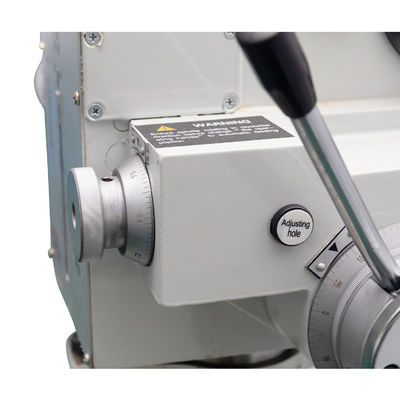

Main Parts Photo and details instruction
Gear Driven Metal Drilling Milling Machine With DRO 1
Gear Driven Metal Drilling Milling Machine With DRO 3
Gear Driven Metal Drilling Milling Machine With DRO 5
Gear Driven Metal Drilling Milling Machine With DRO 7



Standard And Optional
Standard: Allen wrench, Wedge-Wrenches, Drill chuck arbor, screw, draw bar and washers.

Optional: Stand /oil, tripPower feed Attachment, 90mm parallel vise,125mm parallel vise, Drill chuck, Milling holder dia. 63mm, Changing sleeve, Milling chuck, Boring bar, Auto-tapping system, Work light, Coolant system, DRO.
Packing&Shipping
Gear Driven Metal Drilling Milling Machine With DRO 9



main machine packing size :770*880*1160mm
N.G./G.W.:
315/365kgs
Gear Driven Metal Drilling Milling Machine With DRO 11



Our nearest port is Shanghai,and we are available to any port in the world.
Certifications
Gear Driven Metal Drilling Milling Machine With DRO 13
Gear Driven Metal Drilling Milling Machine With DRO 15
Gear Driven Metal Drilling Milling Machine With DRO 17
Gear Driven Metal Drilling Milling Machine With DRO 19
Gear Driven Metal Drilling Milling Machine With DRO 21
Gear Driven Metal Drilling Milling Machine With DRO 23
Gear Driven Metal Drilling Milling Machine With DRO 25
Gear Driven Metal Drilling Milling Machine With DRO 27
Our Workshop
Gear Driven Metal Drilling Milling Machine With DRO 29
Company brief introduction
Anhui Chizhou Household Machine Tool Co., Ltd. founded in 1994.covers a land area of 355,000m² and building area of 180,000m².There are more than 500 sets of various production equipments, such as the imported Gantry Type Pentahedron Machining Center,Precision Guideway Grinders, CNC Gantry Milling Machine, Vertical Machining Center, Horizontal Machining Centers, CNC lathes, CNCuniversal grinding machine and CNC milling machine, etc, more than 40 high-tech advanced equipments. Products are sold at home and abroad and International market network were established in more than 140 countries and regions. Products are widely used in aerospace, automotive, shipbuilding, electric power, mold manufacturing, textile, information industry, general machinery and other fields.
Gear Driven Metal Drilling Milling Machine With DRO 31
Gear Driven Metal Drilling Milling Machine With DRO 33
Gear Driven Metal Drilling Milling Machine With DRO 35
Gear Driven Metal Drilling Milling Machine With DRO 37
We In Fairs
Gear Driven Metal Drilling Milling Machine With DRO 39
Gear Driven Metal Drilling Milling Machine With DRO 41
Gear Driven Metal Drilling Milling Machine With DRO 43
Gear Driven Metal Drilling Milling Machine With DRO 45
Gear Driven Metal Drilling Milling Machine With DRO 47
Gear Driven Metal Drilling Milling Machine With DRO 49
Gear Driven Metal Drilling Milling Machine With DRO 51
Our Service
Gear Driven Metal Drilling Milling Machine With DRO 53



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Gear Driven Metal Drilling Milling Machine With DRO 55



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ
Q:Can you provide customized machines?
A:Yes, we can design and manufacture according to your specific requirements.

Q:Do you have professional engineers?
A:Yes.we have professional engineers and designers.We can provide OEM services.

Q:How about your quality?
A:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 Intemational occupational health and safety management system and Social Accountability 8000(SA8000).Most products have been approved the Europe and American safety standard, including CE,GS,EMS&UL,90% of our products are exported to more than 60 countries and regions around the world,especially to Europe and America market and always win high reputation.So you can rest assured on our quality products and our best services.

Q:What's the MOQ?
A:One set only.

Q:Do you have a stock?
A:Sorry,most of our machines don't have stock,we always produce according to order,However,if during fairs months,maybe have few samples back from fairs.

Q:Can we visit your factory before order?
A:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station or airport if
needed.We will be very honored to help with tickets and accommodation booking.

Q:How is warranty?
A:Warranty time is 13 months after BL date.
