ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO

I'm Online Chat Now

ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO

ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO

Large Image :  ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO

Product Details:
Certification: ISO9001,CE,TUV
Model Number: ZAY7040FG, ZAY7045FG
Payment & Shipping Terms:
Price: $1,350.00/Sets 1-3 Sets
Packaging Details: Standard packing:Fumigation wooden box<br>Also can be customer requirements
Supply Ability: 100 Set/Sets per Month

ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO

Description
Condition: New Type: CLASSIC
Max. Drilling Dia. (mm): 45mm Range Of Spindle Speed(r.p.m): 95 - 1500 R.p.m
CNC Or Not: Normal Drilling Speed: 95-1500 R.p.m
Voltage: As Customer's Requirements Dimension(L*W*H): 770*880*1160mm
Power (kW): 1.1KW/1.5KW Weight (KG): 375 KG
Warranty: 1 Year Key Selling Points: Micro Precesion Feed
Showroom Location: Egypt, Germany, Mexico, Russia, Thailand Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Energy & Mining
Marketing Type: New Product 2020 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Gear, Motor, Gearbox Product Name: Drilling And Milling Machine With CE Certification
Max.drilling Capacity: 45mm Step Of Spindle Speed: 6
Distance From Spindle Nose To Worktable: 450mm Spindle Travel: 260mm
Range Of Spindle Speed: 95-1500r.p.m Worktable Size: 800*240mm
Spindle Taper: MT4/R8 Weight: 375KG
Motor Power: 1.5KW(2HP) After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training
After Warranty Service: Video Technical Support, Online Support Local Service Location: Egypt, Italy, Germany, Brazil, Mexico, Russia, Thailand, Japan, Argentina
Port: SHANGHAI

The main performance characteristics
1: Gear-driven and square column.
2: Milling,drilling,tapping,boring and reaming.
3: Head swivefs ±90° vertically.
4: Micro feed precision.
5: Adjustable gibs on table precision.
6: Strong rigidity,powerful cutting and precise positioning.
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 0
Modle
ZAY7040FG
ZAY7045FG
Drilling capacity
Φ40mm
Φ45mm
Face milling capacity
Φ80mm
Φ80mm
End milling capacity
Φ32mm
Φ32mm
Distance from spindle nose to table
450mm
450mm
Min.distance from spindle axis to column
260mm
260mm
Spindle travel
130mm
130mm
Spindle taper
M.T.4 or R8
M.T.4 or R8
Step of spindle speed
6
6
Range of spindle speed 50HZ
80-1250r.p.m
80-1250r.p.m
60HZ
95-1500r.p.m
95-1500r.p.m
Swivel angle of headstock (vertically)
90°
90°
Table size
800*240mm
800*240mm
Forward and backward travel of table
175mm
175mm
Left and right travel of table
500mm
500mm
Motor Power
1.1KW(1.5HP)
1.5KW(2HP)
Net / Gross weight
323kg/373kg
325kg/375kg
Packing size(L*W*H)
770*880*1160mm
770*880*1160mm
Specification
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 1

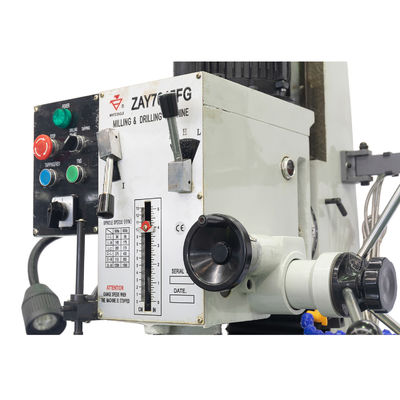

Independent control panel, convenient control
1:One-button emergency stop is safer.
2:Inching make the processing process more accurate.
3:Drilling & milling,stop,tapping function conversion is more convenient.
4:Tapping-rev function high processing accuracy, saving time.
5:A key to start the operation easier.

Power feed attachment
Automatic feed function
can make the processing speed more uniform, more labor-saving, adjustable speed
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 3
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 5

All copper motor

1.5KW all-copper motor, with large torque and strong power
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 7

DRO-3 axis

Three-axis digital display makes the processing size more intuitive and accurate



Accessories
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 9
Standard Accessories
1:Allen wrench.
2:Wedge-wrenches.
3:Drill chuck arbor
4: Screw
5:Draw bar and washers
Optional Accessories
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 11
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 13
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 15
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 17
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 19
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 21
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 23
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 25
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 27
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 29
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 31
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 33
.



Detailed Images
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 35
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 37
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 39
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 41
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 43
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 45
Company Profile
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 47
About us
Anhui Chizhou Household Machine Tool Co Ltd is a lager-sale manufacturing .Our main products are :Precision Guide-way Grinders , CNC Gantry Milling Machine ,Vertical Machining Center ,Horizontal Machining Center , CNC lathe , CNC Universal Grinding Machine , CNC Milling Machine .All the products above have passed CE, ISO, TUV, certificates.Our products are sold at domestic and international market.Our sale area becomes a global network ,which includes more than 130 countries and regions .
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 49
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 51
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 53
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 55
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 57
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 59

Packing & Delivery
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 61
Packing

Size
1920(L)*760(W)*760(H)(MM)
Weight
580/640KG
Packing Details
The normal package is wooden box (size:L*W*H).If export to European countries,the wooden box will be fumigated.If container is too higher ,we will use pe film for packing or pack it according to customers special reguest.




ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 63
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 65
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 67
Certifications
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 69
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 71
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 73
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 75



Exhibition and customers
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 77
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 79
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 81
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 83
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 85
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 87
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 89
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 91
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 93



Our service
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 95

OEM APPROVED

LOGO OEM accept
Packing design OEM accept
Even machine design OEM accept
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 97

Please Contact Me Cathy

Professional team,perfect pre-sale and after-sale service
Engineers available to service machinery overseas
Good English speakers from sale department ,can handle your suggestion
ZAY7045FG Mini Gear Head Metal Drilling Milling Machine With DRO 99

FAQ

1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .

2:Can we visit your factory before order?
A:Sure.All new and old friends are welcomed to visit us at our factory.Besides,we can pick up you at station or airport if needed.We will be very honored to help with tickets and accomodation booking.

3: What is your trade terms?
A : FOB, CFR and CIF all acceptable.

4:What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

5: What's the MOQ?
A: One set only.
