Universal CNC Drilling Milling Machine New Condition

Large Image : Universal CNC Drilling Milling Machine New Condition

Product Details:

Certification:	CE ISO TUV
Model Number:	XK7124B

Payment & Shipping Terms:

Price:	$8,500.00 - $17,000.00/Sets
Packaging Details:	Standard wooden packing.Also can be according to customer request.
Supply Ability:	50 Set/Sets per Month

Contact Now

Universal CNC Drilling Milling Machine New Condition

Description

Type:	Universal	Range Of Spindle Speed(r.p.m):	100 - 6000
Spindle Taper:	BT30	Table Travel (X) (mm):	430
Table Travel (Y) (mm):	280	Table Travel (Z) (mm):	400
Positioning Accuracy (mm):	0.04	Repeatability (X/Y/Z) (mm):	0.02
Condition:	New	Table Travel (mm):	800*240
Year:	2019	Voltage:	Customed
Dimension(LWH):	164012051950mm	CNC Control System:	GSK
Key Selling Points:	Competitive Price	Weight (KG):	1000
Warranty:	1 Year	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
CNC Or Not:	CNC	After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
Power (kW):	3.5KW	Name:	High Quality CNC Drilling And Milling Machine
Worktable Size:	800*240mm	T-slots(mm):	16360mm
X/Y/Z Axis Travel:	430280400mm	Spindle Speed:	100-6000rpm
Position Accuracy:	0.04mm	Repeatability Accuracy:	0.02mm
Main Motor Power:	3.7KW	Max Size Of Tool:	Dia60mm*175mm
Port:	Shanghai

High quality CNC drilling and milling machine

1. Four pieces simple tool magazine on worktable with high effciency.It can realize all the processing as facing,drilling and taping in one claming.

2. High and low step speeds available and stronger torque for low step speed.

3. Three axis transmission by precision ball lead screw with servo motor.

4. Wo style of tool change available,manually and preumatically.

5. Various famous CNC controllers supplied with more choice.

6. Machine stand and machine body are designed separately for easy and flexible installment by user.

Technical Data
Item	Model	XK7124/XK7124A	XK7124B
Worktable	Size of worktable(L×W)(mm)	800×240	800×240
	Size of worktable(L×W)(mm)	900×240 Optional	900×240 Optional
	T slot(width ×qty×spaces)(mm)	16×3×60	16×3×60
	Max loading weight on worktable(kg)	60	60
TRAVEL	X/Y/Z-Axis travel(mm)	430×280×400	430×280×400
	X/Y/Z-Axis travel(mm)	530×280×400	530×280×400
	Distance between spindle nose and table(mm)	60-460	60-460
	Distance between spindle center and column(mm)	297	297
Spindle	Spindle speed(r/min)	100-4000	100-4000
	Spindle taper	BT30	BT30
	Tool clamping way	Manual/Pneumatic	Manual/Pneumatic
	ATC capacity(optional)	no	no
Feeding	Feeding speed(mm/min)	0-2000	0-2000
Feeding	Rapid feeding speed:X,Y,Z axis(m/min)	6	6
ACCURACY	Positioning accuracy(mm)	0.04	0.04
	Repeatability accuracy(mm)	0.02	0.02
	Min.set unit(mm)	0.001	0.001
MOTOR	Main motor power (kw)	1.5(A/C motor)	1.5(A/C motor)
MOTOR	Feeding motor power:X/Y/Z Axis(kw)	1/1/1	1/1/1
TOOLS	Max.size of tool(mm)	Φ60×175	Φ60×175
TOOLS	Max.loading weight of Tool(kg)	3.5	3.5
OTHERS	N.W(include machine stand)(kg)	900	900
	Overall size(L×W×H)(mm)	1640×1205×1950(2050)	1640×1205×1950(2050)
	Packing size(L×W×H)(mm)	1900×1620×2480(2580)	1900×1620×2480(2580)
	Loading amount(20")	3sets	3sets

Detailed Images

Machine Parts

Name: Moving handle wheel

Brand: GSK,SIEMENS,FANUC

Original: China,Germany,Japan

It helps you to move the X/Y/Z axis easily and fast.You also can take the moving hadle wheel far away the machine to keep you safe.

Main parts

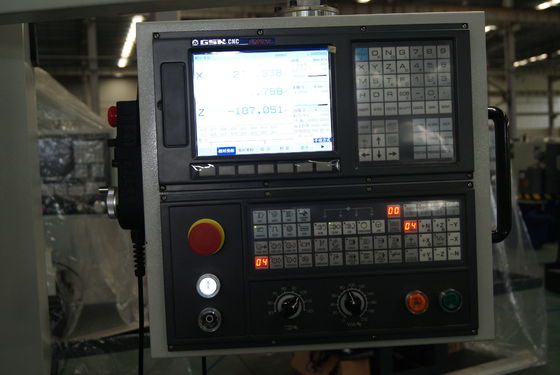

Name:Controlling system
Brand: GSK,SIEMENS,FANUC
Original: China,Germany,Japan

There are also other controlling system as option.

Always one item suit you well.

Machine Parts

Name: Spindle,worktable, lamp

Spindle speed(r/min): 100-4000
Spindle taper: BT30
Tool clamping way: Manual/Pneumatic

Worktable size:800*240mm

Main parts

Name: Simple tool magazine
Four pieces simple tool magazine on worktable with high effciency.It can realize all the processing as facing,drilling and taping in one claming.

Packing & Delivery

Packaging
Size	1900(L) * 1620W) * 2480 (D)
Weight	1.0T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
