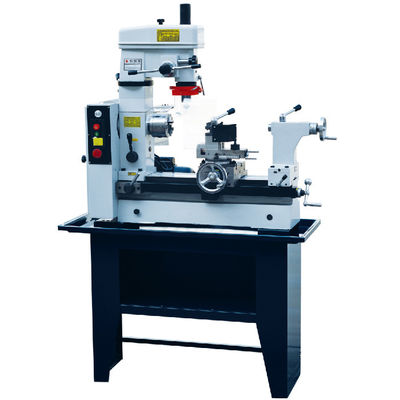

Product Details:
|
Condition: | New | Max. Length Of Workpiece (mm): | 400/500mm |
---|---|---|---|
Range Of Spindle Speed(r.p.m): | 160 - 1360 R.p.m | Machining Capacity: | Light Duty |
Spindle Bore(mm): | 20 | Width Of Bed (mm): | 180 |
Max. Turned Length (mm): | 480 Mm | Type: | Horizontal |
Spindle Motor Power(kW): | 0.55kw | Year: | 2020 |
Voltage: | Customized | Dimension(L*W*H): | 1132*580*1070mm |
Weight (KG): | 226 KG | Warranty: | 1 Year |
Key Selling Points: | Multifunctional | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Energy & Mining, Mechanical Maintenance, DIY Fans, Metal Processing |
Showroom Location: | None | Marketing Type: | New Product 2020 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine, Other |
Function: | Turning,drilling And Milling | Swing Over Bed: | 420mm |
Distance Between Centers: | 400mm/500mm | Spindle Hole: | 20mm |
Tailstock Taper: | M.T.3 | Processing: | Metal Or Wood Processing |
Max.drilling Capacity: | 15mm | Color: | Customrized |
After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
Local Service Location: | None | Port: | SHANGHAI |
ITEM
|
HQ400/3A
|
HQ400/3B
|
HQ400/3L
|
||
Swing over bed
|
φ420mm
|
φ420mm
|
φ420mm
|
||
Distance between centers
|
400mm
|
400mm
|
500mm
|
||
Max. longitudinal travel
|
380mm
|
380mm
|
480mm
|
||
Max. cross travel
|
120mm
|
|
|
||
Taper of spindle
|
M.T.3
|
|
|
||
Spindle hole
|
φ20mm
|
|
|
||
Step of spindle speed
|
7
|
|
|
||
Range of spindle speed
|
160-1360r.p.m
|
|
|
||
Barrel travel
|
70mm
|
|
|
||
Taper of center
|
M.T.3
|
|
|
||
Metric thread range
|
0.2-6mm
|
|
|
||
Inch thread range
|
4-120T.P.I
|
|
|
||
Longitudinal range of automatic feeding
|
0.05-0.175mm/0.002-0.014"
|
|
|
||
Cross range of automatic feeding
|
/
|
/
|
/
|
||
Max. drilling capacity
|
φ15mm
|
|
|
||
Worktable size (L*W)
|
200×150mm
|
|
|
||
Max. end mill
|
φ20mm
|
|
|
||
Max. face mill
|
φ63mm
|
|
|
||
Spindle travl
|
85mm
|
|
|
||
Headstock travel of up and down
|
80mm
|
/
|
80mm
|
||
Spindle taper
|
M.T.3
|
|
|
||
Step of spindle speed
|
14
|
|
|
||
Range of spindle speed
|
117-1300r.p.m
|
|
|
||
Swivel degree of headstock
|
±360°
|
|
|
||
Motor power
|
0.55Kw
|
|
|
||
Voltage/Frequency
|
As customers’ requirement
|
|
|
||
Packing size
|
1030×580×1070mm
|
1030×580×1070mm
|
1132×580×1070mm
|
||
N. weight/G .weight
|
180kg/215kg
|
180kg/215kg
|
185kg/226kg
|
||
Loading amount
|
40pcs/20’container
|
|
|
