Bench type Vertical drilling and milling machine

Bench type Vertical drilling and milling machine
Bench type Vertical drilling and milling machine

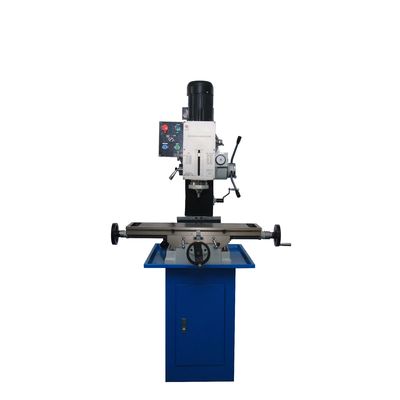

Large Image :  Bench type Vertical drilling and milling machine

Product Details:
Certification: ISO9001,CE,TUV
Model Number: ZAY7032FG/1
Payment & Shipping Terms:
Price: $1,136.00 - $2,605.00/Sets
Packaging Details: Standard packing:WOODEN BOX PACKING<br>Also can be customed
Supply Ability: 500 Set/Sets per Month

Bench type Vertical drilling and milling machine

Description
Condition: New Type: CLASSIC
Max. Drilling Dia. (mm): 32 Range Of Spindle Speed(r.p.m): 95 - 1500
CNC Or Not: Normal Drilling Speed: 95-1500 R.p.m
Voltage: Customed Dimension(L*W*H): 720*830*1150mm
Weight (KG): 320 Warranty: 1 Year
Key Selling Points: Micro Precesion Feed Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training Product Name: Bench Type Vertical Drilling And Milling Machine
Driving Capacity: Diameter=32mm Face Milling Capacity: Diameter=63mm
Distance From Spindle Nose To Table: 450mm Spindle Travel: 130mm
Forward And Backward Travel Of Table: 175mm Left And Right Travel Of Table: 700mm
Table Size: 800*240mm Spindle Taper: MT3,MT4/R8
Weight: 320KGS Power(W): 750
Port: SHANGHAI

Product Description



Features:

1.Spindle speed step-changed cyclically and spindle auto-fedding

and cyclic change of feeding speed
2. Milling,drilling,tapping,boring and reaming
3. Headstock swivels ±90° vertically
4. Mirco feed precision
5. Adjusable gibs on table precision
6 .Strong rigidity ,powerful cutting and precise positioning

SPECIFICATIONS



Model
ZAY7032FG/1
ZAY7040FG/1
ZAY7045FG/1
Drilling capacity
φ32mm
φ40mm
φ45mm
Boring diameter
φ50mm
φ60mm
φ70mm
Face milling capacity
φ63mm
φ80mm
φ80mm
End milling capacity
φ20mm
φ32mm
φ32mm
Distance from spindle nose to table
450mm


Min.distance from spindle axis to column
260mm


Spindle travel
130mm


Spindle taper
M.T.3,MT4 or R8


Step of spindle speed
6


Range of spindle speed 50Hz
80-1250 r.p.m


60Hz
95-1500 r.p.m


Auto-fedding step of spindle
6


Auto-fedding amout of spindle
0.06-0.03mm/r


Swivel angle of headstock (perpendicular)
±90°


Automatic lifting of spindle(As customer's requirement)
240mm/min


Table size
800×240mm(Optinal 1000×240mm)


Forward and backward travel of table
175mm


Left and right travel of table
500(700mm)


Motor Power
0.75KW(1HP)
1.1KW(1.5HP)
1.5KW(2HP)
Net weight/gross weight
320kg/370kg
323kg/373kg
325kg/375kg
Packing size
770×880×1160mm


Loading amount/20''container
36pcs


Bench type Vertical drilling and milling machine 0
Detailed Images
Bench type Vertical drilling and milling machine 2

Machine Parts

Name: Auto-feeding



Spindle speed step-changed cyclically and spindle auto-feeding and cyclic changed of feeding speed.



Adjustable gibs on table precision

Main Part

Name: Motor


Motor power:1.5KW



We also can provide you SIEMENS brand motor for special request.

Bench type Vertical drilling and milling machine 4
Bench type Vertical drilling and milling machine 6

Machine Parts

Name: Worktable

Adjustable gibs on table precision.

Packing & Delivery
Bench type Vertical drilling and milling machine 8
Packaging

Size
1020(L) * 820(W) * 1160 (D)  (MM)
Weight
N.W.280KGS /  G.W. 330KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
